The Dryden Aqua Air Diffuser is a semi-flexible, high-efficiency fine bubble air diffuser available in 9 different lengths, depending on the air, oxygen or carbon dioxide through-put required.

Air Diffuser®

The Dryden Aqua Air Diffuser is a semi-flexible, high-efficiency fine bubble air diffuser available in 9 different lengths, depending on the air, oxygen or carbon dioxide through-put required. It provides oxygen transfer rates of up to 5kg/kw, 10m3/h of air and 1 kg of O2/h. Its semi-flexible construction with its own internal ballast will stay on the bottom of the lagoon or pit without the need to be anchored to the floor. The Dryden Aqua Air Diffuser is quick and easy to install and can be maintained while air blowers are operating and the water reservoir is full.

The Dryden Aqua Air Diffuser combines excellent performance with cost-effectiveness for aeration, oxidation, and biological treatment.

Request a Demo

areas of application

  • Lakes
  • Tanks
  • Lagoons
  • Industrial wastewater treatment
  • Activated sludge, wastewater
  • Landfill leachate waste water
  • Extended diffused aeration systems
  • Agricultural waste water
  • Pre-Treatment of Process Water
  • Oxidation of ferric, manganese and arsenic
  • Aeration channels
  • Iron and Manganese Oxidation
  • Aquaculture
  • Landfill Leachate Treatment
  • Reduction of THMs by air stripping
  • Destratification of lakes or reservoirs
  • Wetland water treatment systems
  • Aquaculture for fish & shrimps

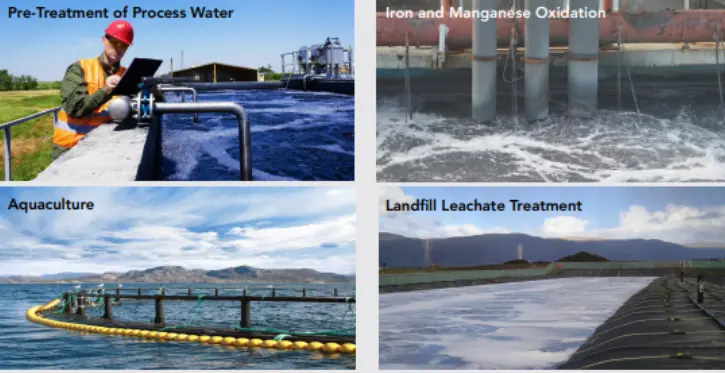

Various wastewater treatment processes shown, including pretreatment, oxidation, aquaculture, and landfill leachate treatment.

features

A metallic block with two threaded holes on the left, a detailed diagram of a component with labeled parts in the center, and a coiled hose with blue and black connectors at both ends on the right.
  • Semi-flexible, tubular construction
  • Self ballasted
  • Available in 9 lengths from 0.3 - 3m.
  • Air handling capacity from 1 - 10m3 /hr
  • Less than 0.2 Bar (3 psi) pressure differential
  • Oxygen transfer efficiency up to 5 kg/kwhr
  • Resistant to calcification
  • Easy to clean and maintain
  • Robust and long-lasting (typical lifespan in chemically aggressive landfill leachate plants is more than 10 yrs)

ADVANTAGES

Maintenance

Solid diffusers suffer from problems of blockage from carbonate and iron deposition and are therefore very difficult to clean and maintain.

Flexible membrane type diffusers stay largely free of fouling but, need a heavy frame or, must be anchored to the base of the aeration tank.

Dryden Aqua diffusers are hybrid units. As they are semi flexible, carbonates and metal oxides simply crack off the unit.

Efficiency

Surface aerators waste a huge amount of kinetic energy with an O2 transfer coefficient of 1 - 2 kg of O2 per kW.

Membrane diffusers are more efficient at 2 kg to 3 kg of Oxygen per kW.

Dryden Aqua fine bubble air diffusers have an average bubble size of 1mm with Oxygen transfer coefficient of over 5 kg of O2 per kW.
